Q-Rad Systems
The Q-Rad systems feature Carestream DRX Technology, along with Smart-System innovations such as TechVision™ and Operator Touch-Control Center. The Q-Rad system provides the flexibility of selecting from Analog or Digital allowing the system to grow along with you and your facilities needs
- Analog or digital – Move up to Digital at any time
- Floor-mount or ceiling-mount tube
- TechVision™ TubeHead Control technology
- System Benefits
- Components
- System Accessories
- Wireless Detectors
System Benefits
Broad Versatility
- System can be configured as analog or digital with a tube stand (either floor or ceiling), table, wallstand and accessories to match your workflow
- Image with the wall stand, table or tabletop for single or dual detector scenarios
Freedom of Movement
- Optional Autotracking features allows floor and ceiling tube stand to track with the table or wall stand in the Z axis allowing enhanced workflow and for the technologist to stay by the patients side
- Simplify weight-bearing, cross-table and off-table studies with generous range of motion
- Control tube stand positioning with fingertip switches on operator hand control
- Release all tube stand locks for multi-directional adjustments with a single switch
Technologist Productivity
- Vertical wall stand includes ergonomically designed EZ-Glide hand control to allow operator image receptor adjustment from comfortable standing position
- Rotating detector tray for table and wall stand allows for quick and controlled manual portrait/landscape rotation of the DRX detector without lifting it out of the tray
- TechVision™ Tubehead Control technology allows the technologist to stay close to the patient during exams with a multi-color touch screen on the tube stand for generator control and image preview within the exam room
Components

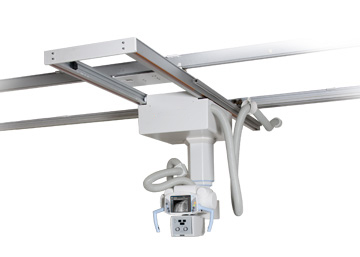

Ceiling-mounted tube
- Offers advanced ergonomic features, with virtually unlimited positioning capabilities
- Allows a wide range of vertical travel with its telescopic column
- Tracks the tube with the table for easier positioning and improved workflow via optional autotracking
- Provides additional exam flexibility with it's broad longitudinal and transverse travel ranges extension options available for even more range.
Freestanding tube stand
- Eliminates the cost and installation hours for additional ceiling mounted rails for facilities that can’t support a ceiling mounted support system
- Offers a wide range of longitudinal and transverse travel, column rotation, tube angulation
- Allows easier positioning and improved workflow with optional autotracking
- Extended floor tracks available for extra positioning flexibility
Standard tube stand
- Offers a selection of floor and wall tracks, speedy installation and reliability with its flexible design
- Features fingertips controls for easy access to multifunction switches for speedy adjustment of longitudinal, vertical and tube angulation
TECHVISION™ on Tube Control with digital preview available on Floor or Ceiling Stands
- Gives technologists full remote generator control inside the exam room with a multi-color touch-panel screen mounted at the tube stand's hand grip
- Technologists can use the color touch display to easily view and set up all technique parameters, as well as access set-up functions right at tube-side
- Provides full two-way generator integration with the DR console for control and display of generator parameters
- Provides a preview image display in <3 seconds for maximum productivity and patient care
Vertical wall stand
- Facilitates easy standing exams with its extensive vertical travel range
- Accommodates weight-bearing knee exams for small children up to very tall adult patients
- Choose from Analog Buckys or Wireless on Demand trays, that accommodate wireless detectors 14”x17”,17”x17”, or fixed detectors and removable grids
Side-mount wall stand option available with loading from left or right side
- Features a narrower base to save major space in smaller rooms
- Available with loading from left or right side
Exam Tables
- Choose from Fixed , Floating and Elevating tables to make patient positioning easy
- Choose from Analog Buckys or Wireless on Demand trays, that accommodate wireless detectors 14”x17”,17”x17”, or fixed detectors and removable grids
Generator Power and Control
- Broad range of generator options available
- Input Power Choice Three Phase 380-480 VAC,208-240,Single Phase 208-240VAC, or Stored Energy for low input power applications.
- Output power ranging from 32 kW to 80 kW with tube choices ranging from 140kHu to 600 kHU
- Choose from Touch Screen Analog or Digital Consoles
- Integrated Collimator selection with optional Dose Area Product (DAP) meter
System Accessories
Table Top Detector/Cassette Holder
- Quick and easy positioning on the x-ray table top
- Accommodates the wireless DRX detector, CR or film cassettes up to 17” x 17” (43 x 43 cm)
- Assists in cross-table lateral exams and other specialty views
- Effortless maneuverability with table top scratch protection
Lateral Detector/Cassette Holder
- Mounts to table rails
- Accommodates the wireless DRX detector, CR or film cassettes up to 17” x 17” (43 x 43 cm)
- Swivel arm (+/-90°) allows for angled table-top positions
- Position receptor either at or below table top to eliminate image cut-off during cross-table exams
- Complete receptor control (+/-35°) for best patient positioning

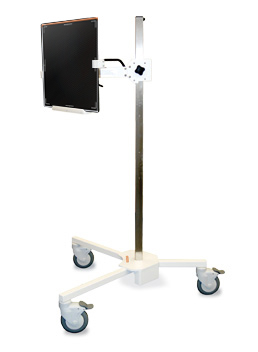

Rolling Lateral Detector/Cassette Holder
- Quick and secure maneuverability around the x-ray exam room
- Accommodates the wireless DRX detector, CR or film cassettes up to 17” x 17” (43 x 43 cm)
- Assists in cross-table lateral exams and other specialty views
- Position receptor either at or below table top to eliminate image cut-off during cross-table exams
- Adjustable height positioning with vertical travel of up to 45.9” (116.6 cm); single-handed vertical adjustment locking
- Receptor rotation +/- 90° for more angle flexibility
- Receptor tilt: 0° through 90°
- Quick locking 5” caster wheels
Step Rolling Stand
- Pick from two (2) or three (3) step weight bearing rolling stand accommodates weight bearing AP and lateral feet and ankle exams
- Technologist can easily position the stand for exams
Wireless Detectors
Detectors that go and grow with you At the heart of the DRX Family is the world’s first wireless, cassette-sized detector. It works across all DRX imaging equipment and allows you to share detectors across facilities, wherever they are needed the most. Setting new standards in efficiency and reliability The original Carestream DRX detector set a new standard for detector performance. The new DRX Plus detector now delivers greater speed, easier handling and improved reliability. Carestream’s DRX detectors feature:
Industry-Leading Performance:
Our portfolio of DR detectors includes wireless, shareable and fixed models to meet your demands based on exam type, detector size, dosage level, and budget. Discover the right detector for your needs at carestream.com/detectors. |
|
Consistently Great Imaging Performance (PDF) Three Plans – Three Options for Protection.
CARESTREAM DRX Accident Protection is uniquely designed for the DRX Detector and can be added to your Warranty Coverage, Smart Care Complete, or Smart Care Select Service Agreements. These plans can cover the full cost or dramatically offset expenses associated with replacement detectors.
DRX Accident Protection Plan Brochure
Learn More: Contact your local Carestream representative or authorized distributor. |
