HPX-DR 2530 High-Resolution, Compact Detector
The HPX-DR 2530 is the latest addition to the Carestream NDT DR family of products. See more with the 98 µm resolution for optimal image defect visibility and do more imaging in confined areas or between objects - the new HPX-DR 2530 fits in tight spaces with its compact size.
- Tungsten shielding for higher cumulative dose while preserving image quality
- Compact size (250 x 300mm) and thin profile (14.7mm) for positioning in tight spaces
- Features
- Specifications
- Performance Accessories
Features
- Improved defect detection with 98 µm resolution
- Compact size (250 x 300mm) and thin profile (14.7mm) for positioning in tight spaces
- Tungsten shielding for higher cumulative dose while preserving image quality
- Protective, weatherproof enclosure for use in harsh environments
- Close-to-edge imaging maximizes surface area for image capture
- Robust wireless connectivity for faster image transfer and analysis
- Lithium-ion batteries with battery 'hot-swap' to keep the detector running during battery change
Specifications
MECHANICAL
Size (mm):
Active area: 250 x 300
Dimensions: 282 x 332 x 14.7
Weight: 3.1kg (6.8 lbs)
Housing Material: Aluminum
Load Limit: Distributed evenly over detector area: 170.1 kg. (375 lb.)
Conversion Screen: DRZ FINE
Pixel Pitch (um): 98
Scan Method: Progressive
A/D Conversion (bits): 16
Image Resolution (lp/mm): 5.1 lp/mm
WIRELESS SYSTEM
Network Type: Isolated Private Wireless LAN (WLAN)
Wireless Protocol: 802.11 A, G, N, AC
ENVIRONMENTAL
Shock: High shock tolerance
Temperature Range (°C):
-20 to +50
Ambient-Storage (-23 to +60)
Shipping (-23 to +60)
Relative Humidity: Operating 10 - 86%
Non-Condensing: Storage 10 - 86%
Ingress Protection: IP57
Performance Accessories
|
The Exposure Interface Box (EIB) An INDUSTREX Digital System accessory that provides a standalone battery powered Wi-Fi access point to HPX-DR Detectors and optionally provides a communications interface to support select Golden pulse generator models. The pulse generator interface enables timing coordination of the HPX-DR Detector image capture with the Golden x-ray pulse generation. |

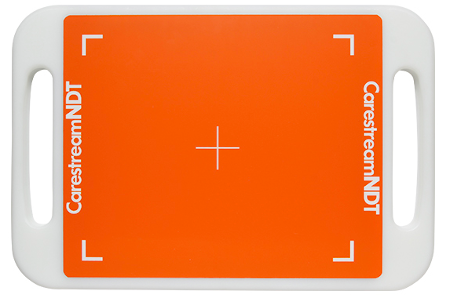

Protective cover for lab use increases detector load limit up to 340 kg. (750 lbs.).

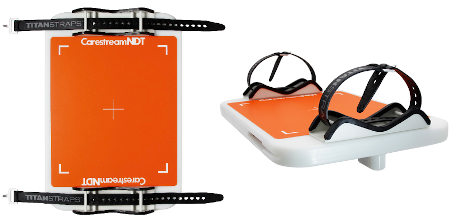

Mount kit with pipe cleats to reduce stress on the detector for pipeline imaging.
|
